American Fireglass Match Light Fire Pit Kits, Round Bowl Pans

3 Reviews
SKU
SS-RSPMKIT-Config
Regular Price $509.94
Special Price $424.95
Buy Now, Pay Later
Clear, transparent terms. Fair rates. No prepayment penalties
Bread Checkout


About the Manufacturer

Located in Lake Elsinore, California, American Fireglass is the world's premier manufacturer of fireplace and fire Pit glass - in addition to the wide variety of gas fire features they offer. Their products can be found in many of the world's most lavish homes, hotels, and restaurants in large part due to the high quality construction and contemporary design. All of American Fireglass' fire glass is made from glass that's been manufactured to guarantee no dangerous edges - what's more, all fire glass products have been quality inspected by highly trained professionals to ensure performance, elegance, and 100% customer satisfaction. Be sure to add American Fireglass' gas fire media to your next fireplace or fire pit project.

Product Overview

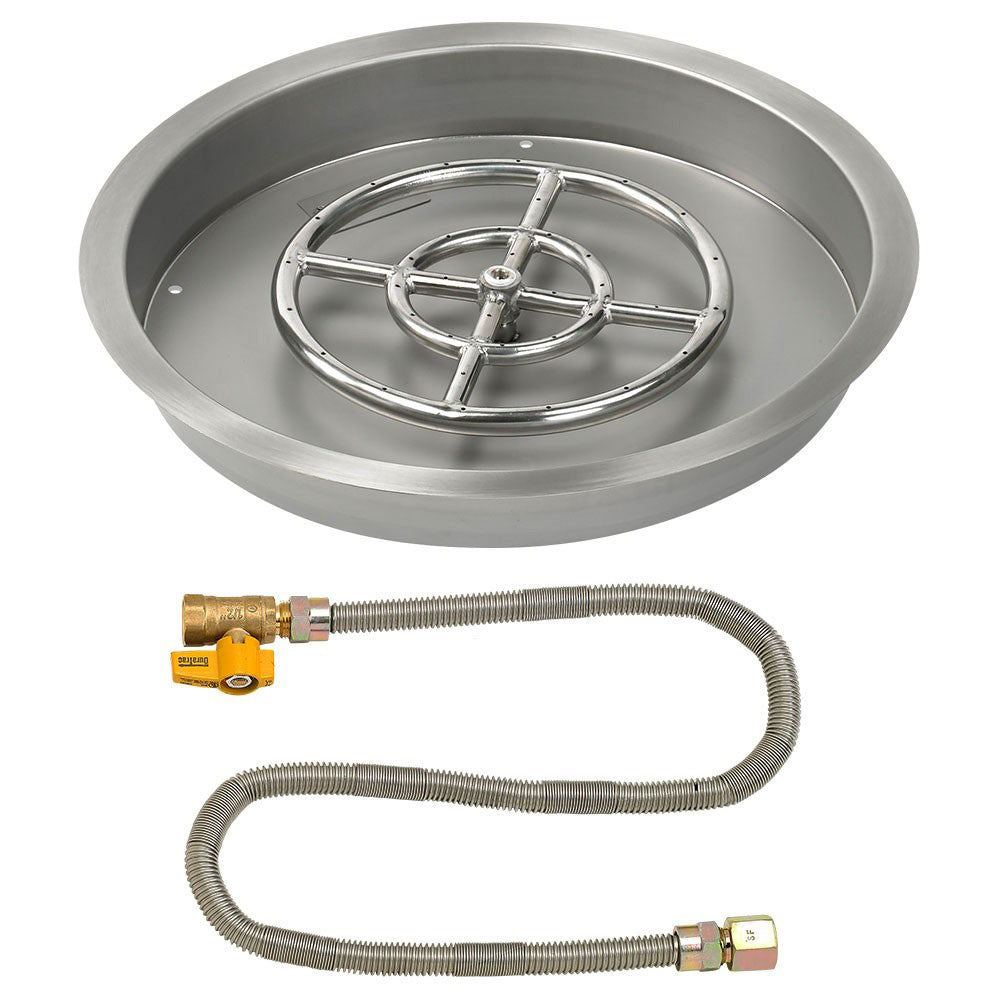

American Fireglass Match Light Fire Pit Kits, Round Bowl Pans is an ideal choice for any outdoor fire pit project. Constructed from high quality stainless steel, these burners and burner pans are sure to provide durability and longevity. The burners feature drilled burner ports to reduce any whistling noise and ensure a quality flame while the pan itself will feature weep holes to assist with water drainage and reduce the risk of burner or system damage, and also include a welded nipple that allows the burner to connect to the gas source. These bowl pans measure 2" deep, with a 1-1/4" lip around the top to easily drop into your custom fire pit enclosure. Also included with this fire pit kit is (1) stainless steel flex line with a shut off valve.

Gas fire pit pans are a crucial component to maintain the safety and quality of your fire pit. Burner pans help support your burner ring, separate the air mixer from fire pit media (for LP applications), and save money by reducing the amount of fire media you would otherwise need to complete your fire pit. Pans also help to minimize fuel settling below the pan, and help your fire pit drain properly, failure to do so may result in personal injury or explosion.

Features

  • High Output Burner - High BTU ratings from the stainless steel burners ensure a beautiful flame
  • Weep Holes - Pre-cut holes help pan drainage, helping to increase the longevity of your burner and burner pan
  • Stainless Steel Construction - Durable #304 stainless steel guarantees a quality product
  • Welded Nipple - 1/2" nipple comes welded to burner pan to easily connect to gas source
  • Match Light Ignition - Manual key valve guarantees reliability and allows flame height adjustment
  • Drilled Burner Ports - Drilled burner ports in the stainless steel burner prevent whistling
  • Includes - Burner, pan, (1) stainless steel flex line with shut off valve
More Information
Manufacturer American Fireglass
Manufacturer Part Number SS-RSPMKIT-Config
Shape Round
Ignition Match Light
Burner Material #304 Stainless Steel
Made in USA No
5
/ 5
3 Reviews

Kenneth Dietz
July 29
Nicely manufactured

Ross
October 07
Great product, works well. All necessary items were included in the shipment.

Shirley
August 05
Fit perfectly in my older model fire pit.

What to Consider When Building a Gas Fire Pit:

  • Gas Supply - Before you begin designing your fire pit, first determine your gas supply
    • Both Natural Gas and Propane may be used - Supply Pressure and BTU ratings need to be regulated for both
    • For Natural Gas: Supply Pressure should be set between 3.5" - 7" Water Column
    • For Propane*: Supply Pressure should be set between 8" - 11" Water Column
    • *If using a 20 lb. propane tank, consider the maximum BTU output of a tank that size ranges from about 90,000 - 125,000 BTU† and a regulator must be used
    • †The BTU rating of the 20 pound tank limits your burner options to sizes that are rated for 125,000 or fewer BTU
  • Fire Pit Burner - The shape and size of your fire pit burner can be choosed after determining your gas supply
    • Choose a burner kit based off of the inside dimension of your enclosure - the fire pit pan will be 6" larger than the burner to provide at least 3" between the edge of the burner and the inside edge of the pit
  • Fire Pit Pan - Included as an option with all of our fire pit kits
    • A pan can be flat or "bowl" style in order to accommodate your construction - it should be installed at least 3-4" below the top surface of your enclosure
    • The burner pan separates the air mixer from the burner in propane applications, but in all constructions it helps with water drainage and ventilation
  • Flange Extension - In many cases, the shut-off valve will be located inside the fire pit - if you're using a key valve and your enclosure walls are thicker than 3" it may be necessary to use a flange extension and a longer key*
    • An external shut off valve is not required with this kit, but may be an option for added safety
  • Ventilation - For all fire pit burners, adequate ventilation is required
    • The recommended amount of ventilation is 36in² - or (2) 18in² vents on two opposing sides to create proper airflow
  • Installation Collars - Are designed to simplify the installation of a fire pit pan
    • Our flexible installation collars can bend for round enclosures, and can be anchored in with concrete screws
  • Fire Media - Is the final step to finishing a gas fire pit
    • Both lava rock and fire glass may be used to complete your fire pit, the choice between the two is purely aesthetic
Match Light Fire Pit Kits, Round Bowl Pans
Model # Burner Information Burner Pan Information
Burner Size Burner BTU Burner Hub Size Pan ID Pan OD Lip Size Pan Depth Nipple Size Fire Glass*
SS-RSPMKIT-19 12" 90,000 1/2" 19" 21.5" 1.25" 2" 1/2" 30 lbs.
SS-RSPMKIT-25 18" 147,000 1/2" 25" 27.5" 1.25" 2" 1/2" 50 lbs.
*Recommended Amount
