The Crossfire by Spark Ignition Original Brass Gas Fire Pit Burner Kits by Warming Trends provides one of the most unique and innovative gas fire pit burner systems available. The heavy duty brass construction ensures an exceptionally high quality product that's designed for long lasting use outdoors while the unique Crossfire™ burner system features an innovative design that combines a specific air to gas mixture ratio to produce a taller, brighter flame. Intended for use with either propane or natural gas, these burners use close to half the fuel of conventional gas burners because of the unique regulation system. Available in a range of sizes and BTU ratings, the Crossfire™ burner offers a corrosion resistant product backed by a full lifetime warranty.

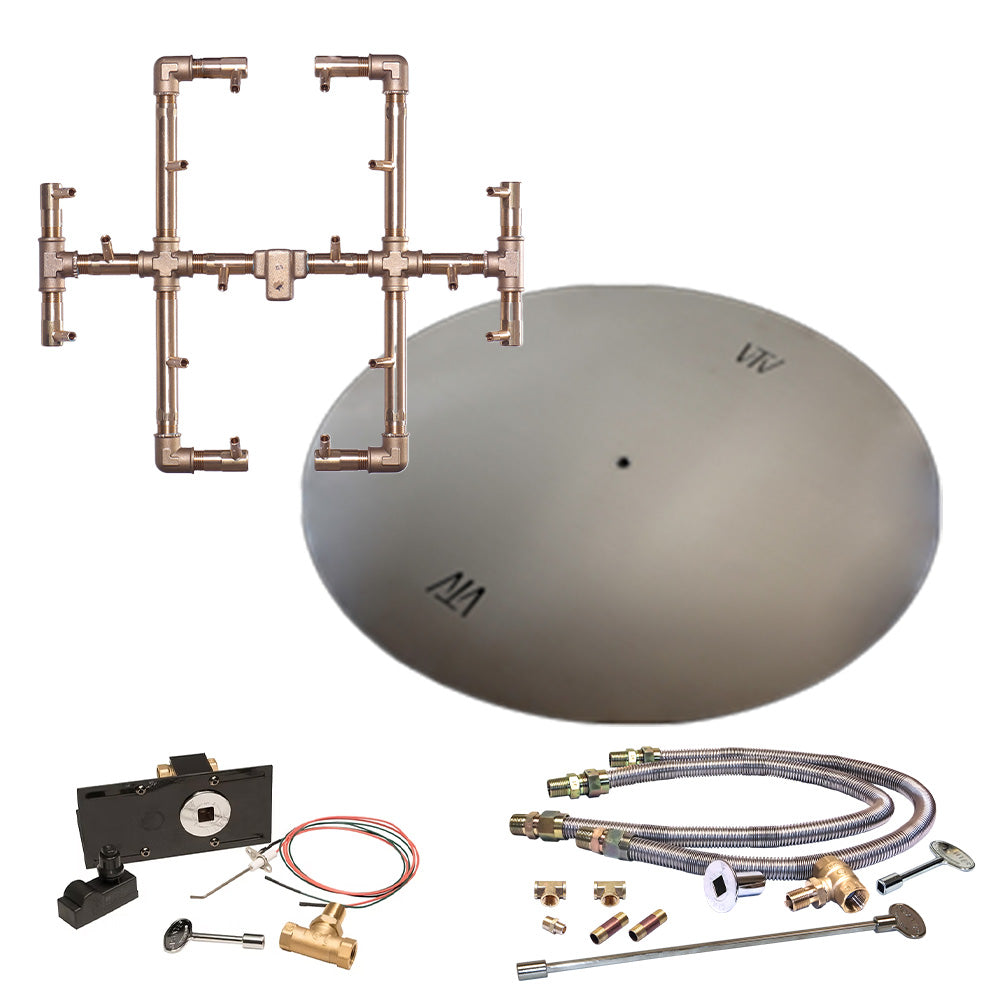

This push button spark ignition kit includes a spark igniter, battery-operated control module, mounting bracket, 1/4-turn ball valve with chrome plated decorative flange and key, a flex line (two for larger burners) that measures 36-inches long, and an optional round or square pan. This ignition system allows for simple ignition and manual flame control with a valve key.

Features:

Brass Burner Construction - Heavy duty brass burner construction ensures a corrosion resistant product
Crossfire™ Burner Design - Innovative burner design with fuel regulation creates a brighter, taller flame presence
Spark Ignition Kit - Includes spark igniter, battery-operated control module, mounting bracket, 1/4-turn ball valve with chrome plated decorative flange and key, flex line (two for larger burners) that measures 36-inches long, and an optional round or square pan
Fuel Efficiency - Unique design creates a fuel efficient burner that consumes half the fuel of conventional burners
Full Lifetime Warranty - Superior quality brass is backed by Warming Trends' Full Lifetime Warranty
Natural Gas or Propane - Burner system can be specified to accommodate natural gas or propane applications

Warming Trends Crossfire™ Burner Systems
Model #	BTU Rating	Inlet Size	Burner Size	Recommended Opening Size
CFB60	60,000	1/2"	7.5" x 7.5"	18"
CFB84	84,000	1/2"	7.5" x 7.5"	18"
CFB120	120,000	1/2"	15.25" x 11.25"	24"
CFB120V2	120,000	1/2"	13" x 13"	24"
CFB180	180,000	1/2"	17" x 15"	30"
CFB250	250,000	1/2"	21.5" x 21.5"	36"
CFB290	290,000	1/2"	21.5" x 21.5"	36"

What to Consider:

What to Consider When Building a Gas Fire Pit:

Gas Supply - Before you begin designing your fire pit, first determine your gas supply

Both Natural Gas and Propane may be used - Supply Pressure and BTU ratings need to be regulated for both
For Natural Gas: Supply Pressure should be set between 3.5" - 7" Water Column
For Propane*: Supply Pressure should be set between 8" - 11" Water Column
*If using a 20 lb. propane tank, consider the maximum BTU output of a tank that size ranges from about 90,000 - 125,000 BTU† and a regulator must be used
†The BTU rating of the 20 pound tank limits your burner options to sizes that are rated for 125,000 or fewer BTU

Fire Pit Burner - The shape and size of your fire pit burner can be choosed after determining your gas supply

Choose a burner kit based off of the inside dimension of your enclosure - the fire pit pan will be 6" larger than the burner to provide at least 3" between the edge of the burner and the inside edge of the pit

Fire Pit Pan - Included as an option with all of our fire pit kits

A pan can be flat or "bowl" style in order to accommodate your construction - it should be installed at least 3-4" below the top surface of your enclosure
The burner pan separates the air mixer from the burner in propane applications, but in all constructions it helps with water drainage and ventillation

Flange Extension - In many cases, the shut-off valve will be located inside the fire pit - if you're using a key valve and your enclosure walls are thicker than 3" it may be necessary to use a flange extension and a longer key*

An external shut off valve is not required with this kit, but may be an option for added safety

Ventilation - For all fire pit burners, adequate ventilation is required

The recommended amount of ventilation is 36in² - or (2) 18in² vents on two opposing sides to create proper airflow

Installation Collars - Are designed to simplify the installation of a fire pit pan

Our flexible installation collars can bend for round enclosures, and can be anchored in with concrete screws

Fire Media - Is the final step to finishing a gas fire pit

Both lava rock and fire glass may be used to complete your fire pit, the choice between the two is purely aesthetic

Downloads:

Installation & Operation Instructions

About the Manufacturer:

A family owned and operated business, Warming Trends specializes in manufacturing their innovative Crossfire™ Brass Burner Systems. Their state-of-the-art burner has reimagined the capabilities of backyard gas fire features by using a specific air-to-gas mixture that produces a taller, brighter flame - all while using half the fuel of conventional gas burners. All of their work is done in Colorado to ensure the highest standards using only the best quality materials so you can rest assured they stand behind their products - complete with a full lifetime warranty.

Manufacturer	Warming Trends
Shipping Status	Leaves warehouse in 10-15 business days
Manufacturer Part Number	CFB-PBIK-Config
