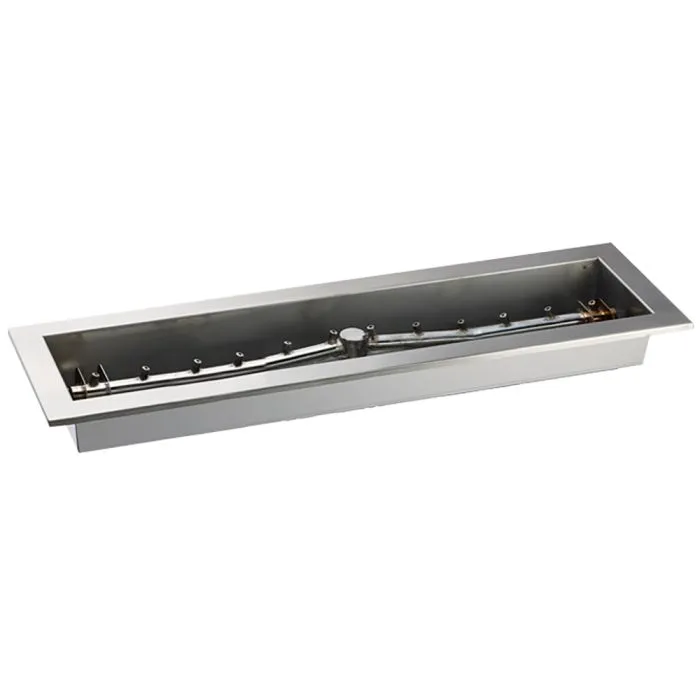

Hearth Products Controls Drop-In Fire Pit Burner Pan, Linear Trough - Burner Included

3 Reviews
SKU
TRGH-Config
Regular Price $263.00
Special Price $210.32
Product Options:
Buy Now, Pay Later
Clear, transparent terms. Fair rates. No prepayment penalties
Bread Checkout

Product Overview

Hearth Products Controls Drop-In Fire Pit Burner Pan, Linear Trough - Burner Included provides a high quality fire pit burner and pan to help complete the installation of your gas fire pit project. The linear trough style pan is made of high quality 304 stainless steel while the depth of the trough provides space for your fire media and the lip around the edges creates an easy "drop-in" style application. The inside dimensions of the pan are indicated while the 2 1/2 inch deep trough has a 1 3/8 inch rim around the top to add 2.75 inches to the total dimensions. The burner pan also features a 7/8 inch through hole in the center for the fire ring and the gas source, as well as weep holes for drainage.

The included linear T burner features a 304 stainless steel construction for the same long lasting durability. The burner ports are drilled, not punched, to ensure no noise is created by debris within the burner while they are staggered to create a varied flame pattern. This burner is rated between 50,000 - 200,000 BTU and is intended for use with natural gas or propane to produce a 10 inch flame height the entire length of the burner.

Gas fire pit pans are a crucial component to maintain the safety and quality of your fire pit. Burner pans help support your burner ring, separate the air mixer from fire media (for LP applications), and save money by reducing the amount of fire media you would otherwise need to complete your fire pit. Pans also help to minimize fuel settling below the pan, and help your fire pit drain properly, failure to do so may result in personal injury or explosion.

Features

  • Heavy Duty Construction - Complete 304 stainless steel construction ensures a long lasting and durable product
  • Trough Style Pan - Linear trough pan features a 1 3/8 inch flange around the top for an easy "drop in" application
  • Weep Holes - Drilled holes in the burner pan allow proper water drainage
  • Through Hole - 7/8 inch through hole allows for the gas inlet and supply line to connect
More Information
Manufacturer Hearth Products Controls
Manufacturer Part Number TRGH-Config
Burner Material #304 Stainless Steel
Raised Center Hub No
Burner Hub Size 1/2 Inch
Burner Hole Pattern Staggered
Burner Holes Drilled Yes
Center Flame (max) 10"
Pan Type Trough
Shape Linear
Manufacturer Part Number TRGH-Config
Made in USA No
Fuel Type Propane
4.67
/ 5
3 Reviews

Michael
May 30
Looks awesome

Gil
September 21
This trough has a bow in the middle on both sides and doesn't sit flush with the fire pit surface. Not sure if this is normal. Please advise.1

Jeff
May 22
Great service, they talked me through what I needed and it worked perfectly.

What to Consider When Building a Gas Fire Pit:

  • Gas Supply - Before you begin designing your fire pit, first determine your gas supply
    • Both Natural Gas and Propane may be used - Supply Pressure and BTU ratings need to be regulated for both
    • For Natural Gas: Supply Pressure should be set between 3.5" - 7" Water Column
    • For Propane*: Supply Pressure should be set between 8" - 11" Water Column
      • *Do not use a burner rated for greater than 125,000 BTU with a 20-pound propane tank.

  • Fire Pit Burner - The shape and size of your fire pit burner can be choosed after determining your gas supply
    • Choose a burner kit based off of the inside dimension of your enclosure - the fire pit pan will be 6" larger than the burner to provide at least 3" between the edge of the burner and the inside edge of the pit

  • Fire Pit Pan - Included with all of HPC's preassembled fire pit kits
    • A pan can be flat or "bowl" style in order to accommodate your construction - it should be installed at least 3-4" below the top surface of your enclosure
    • The burner pan separates the air mixer from the burner in propane applications, but in all constructions it helps with water drainage and ventillation

  • Flange Extension - In many cases, the shut-off valve will be located inside the fire pit - if your enclosure walls are thicker than 3" it may be necessary to use a flange extension and a longer key
    • An external shut off valve is not required with this kit, but may be an option for added safety

  • Ventilation - For all fire pit burners, adequate ventilation is required
    • The recommended amount of ventilation is 36in² - or (2) 18in² vents on two opposing sides to create proper airflow

  • Installation Collars - Are designed to simplify the installation of a fire pit pan
    • Our flexible installation collars can bend for round enclosures and can be anchored in with concrete screws

      How Many Installation Collars Do I Need?

      Round Pan Size (Diameter)*

      Number of Collars

      12”

      2 Units

      18”

      3 Units

      24”

      4 Units

      30”

      5 Units

      36”

      6 Units

      42”

      7 Units

      48”

      8 Units

      54”

      9 Units

      *NOTE: For square or rectangular enclosures, use enclosure length and width measurements


  • Fire Media - Is the final step to finishing a gas fire pit
    • Both lava rock and fire glass may be used to complete your fire pit, the choice between the two is purely aesthetic

HPC Linear Trough SS Burners
Model # Burner Pan Media
Burner Size Btu (max) Center Flame Pan ID Pan OD Lava Rock* Fire Glass*
24SSTRGH 24" 50k 10" 24 x 5.3" 26.6"L x 7.9"W 2.5"D 1 Cu Ft 10 lbs
36SSTRGH 36" 75k 10" 36 x 5.3" 38.6"L x 7.9"W 2.5"D 1 Cu Ft 20 lbs
48SSTRGH 48" 100k 10" 48 x 5.3" 50.6"L x 7.9"W 2.5"D 1 Cu Ft 30 lbs
60SSTRGH 60" 125k 10" 60 x 5.3" 62.6"L x 7.9"W 2.5"D 1 Cu Ft 30 lbs
72SSTRGH 72" 150k 10" 72 x 5.3" 74.6"L x 7.9"W 2.5"D 1 Cu Ft 40 lbs
96SSTRGH 96" 200k 10" 96 x 5.3" 98.6"L x 7.9"W 2.5"D 1 Cu Ft 50 lbs
*Minimum Recommended
About the Manufacturer

HPC is on the cutting edge of outdoor gas fire pit technology and offers a wide variety of burners to fit the need of any construction or do-it-yourself project. All HPC fire pit rings have staggered burner ports for a more natural-looking flame pattern and presence. Both stainless steel and cold rolled steel burners are available, and both feature ports that are drilled, not punched, for optimal quality; the burner hub is raised above the concentric rings to reduce the risk of water in the valve or gas line.
